Overview

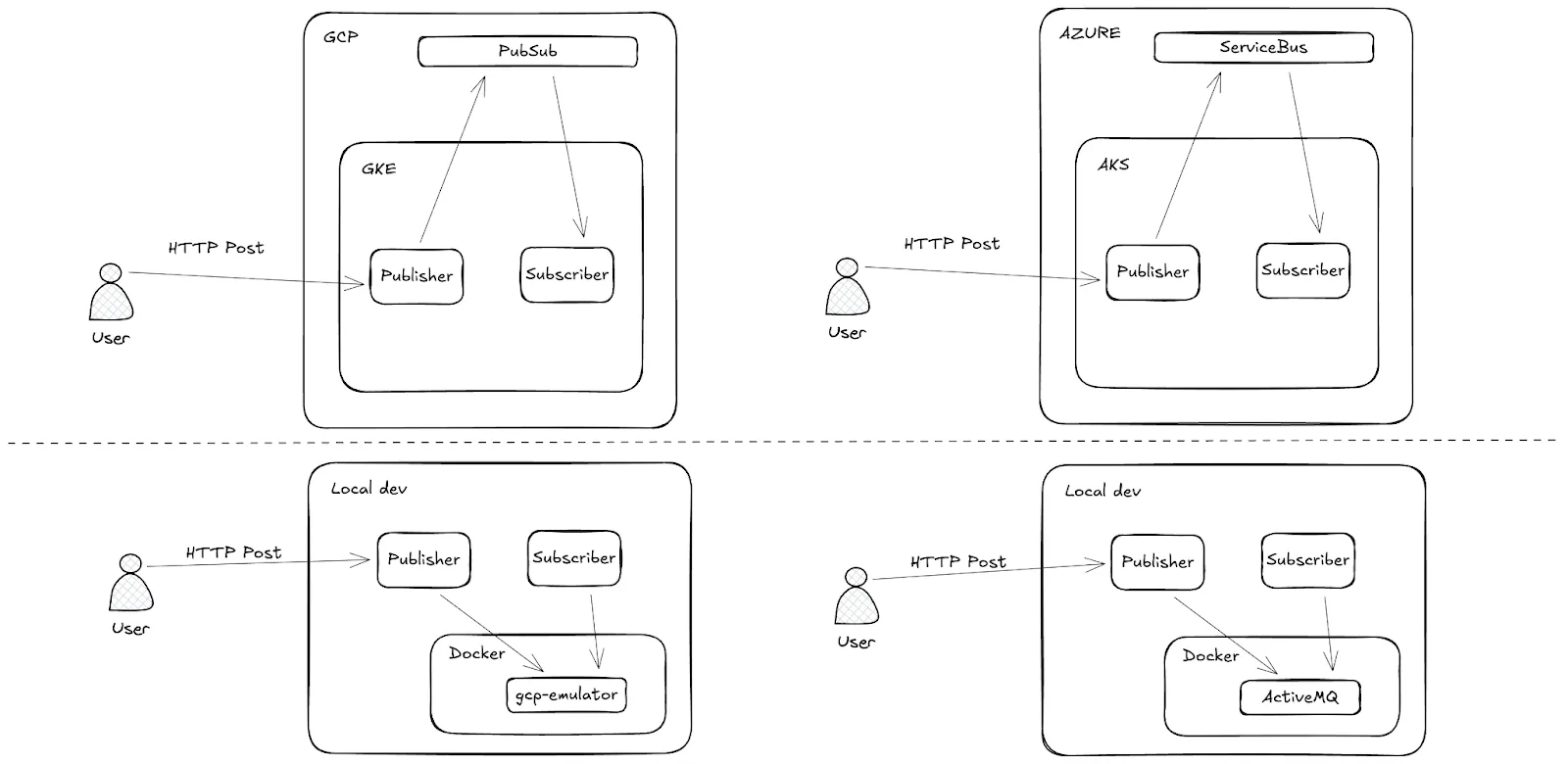

Our reference architecture follows a typical event-driven microservices pattern:
- Publisher service: Receives incoming HTTP requests and publishes events to a message broker
- Subscriber service: Consumes messages from the broker and processes them
On GCP, these applications run inside Google Kubernetes Engine (GKE) and rely on Pub/Sub for messaging. The target on Azure is Azure Kubernetes Service (AKS) with Service Bus providing the messaging layer. As we rely on Kubernetes to provide a portable runtime abstraction we will focus our migration efforts on the messaging layer rather than the entire application stack.
We also can’t overlook our local development setup. To be able to test it locally, we use Docker to simulate cloud services, running Pub/Sub Emulator for GCP and ActiveMQ to replicate Azure’s JMS integration. Here is an overview diagram for reference.
Migration strategy
Keeping the application’s core logic unchanged, our cloud-native migration strategy focuses on three important layers:
- Infrastructure: Moving workloads from GKE to AKS and migrating messaging from Pub/Sub to Service Bus.
- Application Configuration: Ensuring that both Publisher and Subscriber can connect to the correct messaging backend while avoiding rewrites of business logic.
- Developer Workflow: Keeping local testing consistent with cloud deployments to minimize friction and maintain developer productivity.
To support these layers, we leverage three complementary abstractions:
- Kubernetes provides a consistent runtime across both GCP and Azure.
- Spring Profiles enables configuration switching without modifying core logic.
- Terraform ensures infrastructure reproducibility.
Implementation details
Infrastructure as Code
It’s been said many times, but it’s always worth repeating: reliable migrations can’t be built on manual infrastructure setup, often called ClickOps. Every mouse click is an undocumented decision, a potential inconsistency, and a future failure point. Infrastructure as Code (IaC) replaces this fragility, the manual configurations, and brings order, where:
- Changes are documented and auditable through version control;
- Teams can collaborate without conflicting manual setups;
- Infrastructure can be reused across environments;
- Deployments are automated and repeatable;
- Scaling and evolving the infrastructure becomes much easier.
GCP infrastructure
We begin on GCP with a minimal Terraform example that provisions a GKE cluster and Pub/Sub resources.
resource "google_container_cluster" "primary" {
name = "${var.project}-gke"
location = var.region
deletion_protection = false
remove_default_node_pool = true
initial_node_count = 1
network = google_compute_network.vpc.name
subnetwork = google_compute_subnetwork.subnet.name
}
resource "google_container_node_pool" "primary_nodes" {
name = google_container_cluster.primary.name
location = var.region
cluster = google_container_cluster.primary.name
node_count = var.gke_num_nodes
autoscaling {
min_node_count = var.general_purpose_min_node_count
max_node_count = var.general_purpose_max_node_count
}
node_config {
oauth_scopes = [
"https://www.googleapis.com/auth/logging.write",
"https://www.googleapis.com/auth/monitoring",
"https://www.googleapis.com/auth/devstorage.read_only",
"https://www.googleapis.com/auth/pubsub"
]
labels = {
env = var.project
}
machine_type = var.general_purpose_machine_type
tags = ["gke-node", "${var.project}-gke"]
metadata = {
disable-legacy-endpoints = "true"
}
}
}
resource "google_pubsub_topic" "articles" {
name = "articles"
labels = {
env = var.project
}
}
resource "google_pubsub_subscription" "articles_events" {
name = "articles-events"
topic = google_pubsub_topic.articles.id
labels = {
env = var.project
}
}
Azure infrastructure
The Azure equivalent maintains structural parity while accounting for platform differences:
resource "azurerm_servicebus_namespace" "main" {
location = azurerm_resource_group.rg.location
name = var.servicebus_namespace_name
resource_group_name = azurerm_resource_group.rg.name
sku = var.servicebus_sku
tags = var.tags
}
resource "azurerm_servicebus_topic" "main" {
name = var.servicebus_topic_name
namespace_id = azurerm_servicebus_namespace.main.id
}
resource "azurerm_servicebus_subscription" "main" {
name = var.servicebus_subscription_name
topic_id = azurerm_servicebus_topic.main.id
max_delivery_count = 1
}
resource "azurerm_user_assigned_identity" "aks" {
location = azurerm_resource_group.rg.location
name = "${var.cluster_name}-identity"
resource_group_name = azurerm_resource_group.rg.name
}
resource "azurerm_kubernetes_cluster" "main" {
location = azurerm_resource_group.rg.location
name = var.cluster_name
resource_group_name = azurerm_resource_group.rg.name
dns_prefix = var.cluster_name
default_node_pool {
name = "default"
vm_size = var.node_vm_size
node_count = var.node_count
upgrade_settings {
drain_timeout_in_minutes = 0
max_surge = "10%"
node_soak_duration_in_minutes = 0
}
}
identity {
type = "UserAssigned"
identity_ids = [azurerm_user_assigned_identity.aks.id]
}
tags = var.tags
}
resource "azurerm_role_assignment" "acr_pull" {
principal_id = azurerm_kubernetes_cluster.main.kubelet_identity[0].object_id
role_definition_name = "AcrPull"
scope = azurerm_container_registry.main.id
skip_service_principal_aad_check = true
}
Application layer: Spring boot
The strength of Spring’s profile system lies in its ability to manage environment-specific configurations with ease. By organizing cloud-specific settings into separate profiles, it maintains a clear separation of concerns.
Kubernetes deployment configuration
Before we move to application configuration, let’s write a simple Kubernetes deployment manifest to deploy our services. It uses environment variables, among others, to activate the appropriate Spring profile.
Publisher service example:
apiVersion: apps/v1
kind: Deployment
metadata:
name: publisher-deployment
spec:
selector:
matchLabels:
app: publisher
replicas: 1
template:
metadata:
labels:
app: publisher
spec:
containers:
- name: publisher
image: "<hub>/publisher:1"
ports:
- containerPort: 8080
env:
- name: SPRING_PROFILES_ACTIVE
value: gcp
....
Core setup (platform agnostic)
Publisher
The Publisher is implemented as a Spring Boot application that exposes an HTTP endpoint and pushes events into Pub/Sub using Spring Integration.
public record Event(String id, String name) {}
@MessagingGateway
public interface IntegrationGateway {
@Gateway(requestChannel = "articlesMessageChannel")
void send(Object message);
}
@RestController
public class PublisherAPI {
private static final Logger LOGGER = LoggerFactory.getLogger(PublisherAPI.class);
final IntegrationGateway integrationGateway;
public PublisherAPI(IntegrationGateway integrationGateway) {
this.integrationGateway = integrationGateway;
}
@PostMapping("/send")
public void send(@RequestBody Event message) {
LOGGER.info(message.toString());
integrationGateway.send(message);
}
}
. . . . .
Subscriber
The Subscriber is a Spring Boot application that consumes events from Pub/Sub and handles them via defined business logic.
public record Event(String id, String name) {}
.....
GCP specific configuration
When running on GCP (activated via gcp or dev-gcp profile):
Publisher configuration:
@Configuration
@Profile({"dev-gcp", "gcp"})
public class PubSubPublisherConfiguration {
@Bean
public MessageChannel articlesMessageChannel() {
return new PublishSubscribeChannel();
}
@Bean
public PubSubMessageConverter messageConverter() {
return new JacksonPubSubMessageConverter(new ObjectMapper());
}
@Bean
@ServiceActivator(inputChannel = "articlesMessageChannel")
public PubSubMessageHandler articlesOutboundAdapter(PubSubTemplate pubSubTemplate, PublisherProperties publisherProperties) {
return new PubSubMessageHandler(pubSubTemplate, publisherProperties.getArticlesTopic());
}
}
Subscriber configuration
@Configuration
@Profile({"dev-gcp", "gcp"})
public class PubSubSubscriberConfiguration {
private static final Logger LOGGER = LoggerFactory.getLogger(PubSubSubscriberConfiguration.class);
@Bean
public MessageChannel articlesMessageChannel() {
return new PublishSubscribeChannel();
}
@Bean
public PubSubMessageConverter messageConverter() {
return new JacksonPubSubMessageConverter(new ObjectMapper());
}
@Bean
public PubSubInboundChannelAdapter listingChannelAdapter(@Qualifier("articlesMessageChannel") MessageChannel inputChannel,PubSubTemplate pubSubTemplate, SubscriberProperties properties) {
var adapter = new PubSubInboundChannelAdapter(pubSubTemplate, properties.getArticlesSubscription());
adapter.setOutputChannel(inputChannel);
adapter.setAckMode(AckMode.MANUAL);
adapter.setPayloadType(Event.class);
return adapter;
}
@ServiceActivator(inputChannel = "articlesMessageChannel")
public void consume(@Payload Event payload,
@Header(GcpPubSubHeaders.ORIGINAL_MESSAGE) BasicAcknowledgeablePubsubMessage message) {
LOGGER.info(payload.toString());
message.ack();
}
}
Azure specific configuration
When running on Azure (activated via azure or dev-azure profile):
Publisher configuration
@Configuration
@Profile({"dev-azure", "azure"})
public class JMSPublisherConfiguration {
@Bean
public MessageChannel articlesMessageChannel() {
return new PublishSubscribeChannel();
}
@Bean
@ServiceActivator(inputChannel = "articlesMessageChannel")
public MessageHandler jmsMessageHandler(JmsTemplate jmsTemplate, PublisherProperties publisherProperties) {
return message -> {
jmsTemplate.convertAndSend(publisherProperties.getArticlesTopic(), message.getPayload());
};
}
@Bean
public JmsTemplate jmsTemplate(ConnectionFactory connectionFactory, ObjectMapper objectMapper,
ObservationRegistry observationRegistry) {
JmsTemplate jmsTemplate = new JmsTemplate();
jmsTemplate.setConnectionFactory(connectionFactory);
jmsTemplate.setMessageConverter(new JMSMessageConverter<>(objectMapper, Event.class));
jmsTemplate.setMessageIdEnabled(true);
jmsTemplate.setPubSubDomain(true);
jmsTemplate.setObservationRegistry(observationRegistry);
return jmsTemplate;
}
}
Subscriber configuration
@Configuration
@Profile({"dev-azure", "azure"})
public class JMSSubscriberConfiguration {
@Bean
public DefaultJmsListenerContainerFactory jmsArticlesListenerContainerFactory(ConnectionFactory connectionFactory,
ObjectMapper objectMapper, ObservationRegistry observationRegistry) {
DefaultJmsListenerContainerFactory factory = new DefaultJmsListenerContainerFactory();
factory.setConnectionFactory(connectionFactory);
factory.setMessageConverter(new JMSMessageConverter<>(objectMapper, Event.class));
factory.setSessionTransacted(true);
factory.setPubSubDomain(true);
factory.setObservationRegistry(observationRegistry);
return factory;
}
}
Developer experience and Local development
A migration strategy that ignores developer experience, including local cloud migration testing with Spring Boot, is doomed to fail. For our use case, engineers need to test changes locally without provisioning cloud resources. Our solution provides platform-specific emulators that maintain API compatibility. We use docker to spin up “emulator” containers depending on profile.
For GCP
docker run -it -p 8085:8085 google/cloud-sdk:530.0.0-emulators gcloud beta emulators pubsub start --host-port=0.0.0.0:8085
For Azure
Use ActiveMQ as a JMS provider that mimics Service Bus behavior locally.
docker run -d --name activemq -p 8161:8161 -p 61616:61616 -e 'ACTIVEMQ_OPTS=-Djetty.host=0.0.0.0' apache/activemq-classic:latest
In the end
Cloud migrations don’t need to be lengthy, multi-quarter projects that delay feature delivery and frustrate engineering teams. By using the right abstractions, as in our use case with Kubernetes for runtime portability, Spring Profiles for configuration management, and Infrastructure as Code for reproducibility, you can carry out migrations efficiently and with minimal disruption.
More importantly, this isn’t just about moving from one cloud to another. It’s about designing adaptable systems that evolve alongside changing business priorities, whether driven by cost optimization, regulatory compliance, or strategic shifts. In our Spring Boot cloud migration from GCP Pub/Sub to Azure Service Bus, we showed how using Kubernetes, Spring Profiles, and Terraform simplifies the process, minimizes disruption, and ensures consistent behavior across environments. The real power of a well-executed migration lies in its ability to transform both technology and teams. It creates a resilient infrastructure while fostering a culture of ownership and collaboration, ensuring that your business can adapt and thrive no matter what the future holds. If you’re exploring industry-specific cases, check out our work in manufacturing software development.
Originally published in the ProductDock blog section
